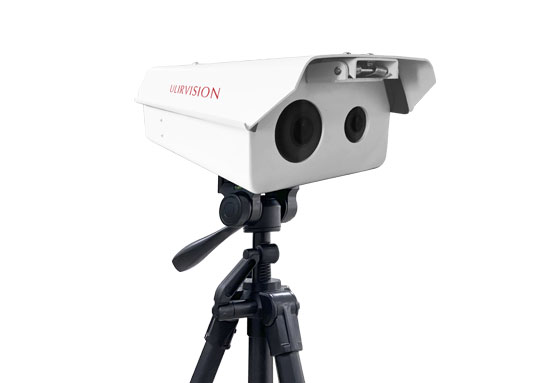

TI160-P11B is a non-contact human body temperature measurement system specially designed for human body inspection and quarantine sites. The system adopts infrared thermal imaging and high-definition visible light superposition technology, with online temperature measurement, temperature alarm, face recognition and other functions. It can be widely used in airports, stations, subways, hospitals, schools, shopping malls, enterprises and institutions and other densely populated places. This system can quickly screen fever patients among large-scale floating populations, help security inspectors and medical staff improve the efficiency of epidemic detection, build the first line of defense for epidemic prevention and control.
External black body calibration accuracy ±0.3℃
Automatically recognize human face and display body surface temperature value to avoid false alarm
Mask detection function, alarm popover and voice prompt
Rich Web-side function settings
Support recording video for playback and query
Smart analysis list, face comparison
Query log and export, People counting
Item | TI160-P11B |
Application field | Large shopping malls, complexes, cinemas, railway stations, subways and other public places security checkpoints, large office buildings |
Detector Data | |
Type | Uncooled FPA |
IR resolution | 384×288 |
Pixel pitch | 17μm |
Spectral range | 7.5～14μm |
NETD/Sensitivity | 65mK |
Infrared lens | |
FOV | 40°× 30° |
Minimum imaging distance | 50cm |
IFOV | 1.889 mrad |
Focus | Fixed |
Lens Data | 9mm |
Visible light camera | |
Sensor type | 1/2.8"SONY Progressive Scan CMOS |
Video compression standard | H.264/H.265/MJPEG |
H.265 encoding type: Main Profile | |
H.264 encoding type: BaseLine Profile | |
Audio video | |
Main stream | 1920*1080/1280*720 (Frame rate1~30fps adjustable) |
Sub stream | 704*576/640*480/640*352/320*240 |
Video bit rate | 30Kbps～16Mbps bit rate adjustable; Support fixed bit rate and variable bit rate |
Video character overlay | Display the video channel name, time, date, |
Display position can be set | |
Image auto adjustment function | Auto exposure (AEC), auto white balance (AWB), |
Image adjustment | Color saturation, brightness, contrast, hue, sharpness, |
Audio compression format | G.711A/G.711U/G.726 |
Storage type | Video/picture |
Recording settings | Support |
Network protocol | TCP/IP, UDP, RTP, RTSP, RTCP |
ONVIF protocol | Support PROFILE S |
Remote browsing | |
Computer | Support IE6.0 and above version, Firefox, Google |
Online browsing users | Support up to 5 users |
Shell applicable environment | Aluminum alloy material, suitable for outdoor |
Installation mode | Bracket installation |
Temperature range | 30~45℃ error ±0.5℃ External blackbody mode accuracy±0.3℃ |
Working environment | 16°C ~ 35 °C |
Humidity | 0% -85% RH |
Power supply | DC12V 2A |
Power consumption | <12W |
Size | L335×W189×H107mm |
Weight | <2500g |
Shopping malls, complexes, cinemas
Security checkpoints in public places such as railway stations and subways
Office buildings
