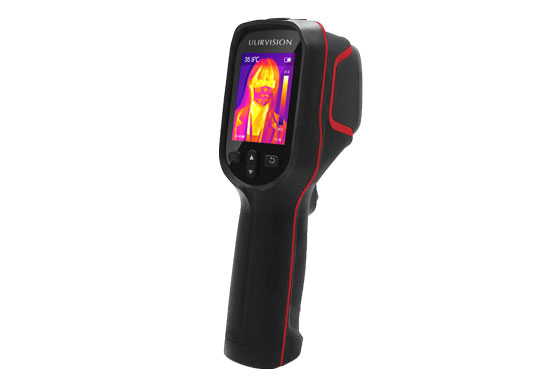

T10P is a special infrared human body temperature screening device. This thermal imaging camera has extraordinary functions such as high accurate temperature measurement, real-time imaging, high-temp auto tracking, quickly lock the target etc. Currently, it is widely used in railway stations, bus stations, subway stations, airports, hospitals, schools, government buildings, enterprises and institutions, shopping malls, food markets, parks and other public places for investigation of abnormal body temperature. With durable quality, compact and lightweight body, integrated with multiple sensing functions of infrared, visible light, fill light, laser indicator, T10P can effectively improve the efficiency of detection.
160×120 Uncooled detector
Measurement accuracy ±0.5℃
Visible and infrared image fusion and overlay
Multiple measure modes: Center spot, highest temp, lowest temp
Multiple sensors: infrared, visible light, fill light, laser indicator
8hours battery life
Weighing only 320g
2 meters drop protection
Item | T10P |
Detector Data | |
Type | Uncooled FPA |
IR resolution | 160×120 |
Pixel pitch | 17μm |
Spectral range | 7.5～14μm |
NETD/Sensitivity | 50mK |
Lens Data | |
FOV | 42°× 32° |
Minimum imaging distance | 30cm |
IFOV | 4.42mrad |
Focus | No need to focus |
Image Performance | |
Display | 2.4”LCD display,320×240 |
Visible light camera | 3 megapixel CMOS, auto focus, 1 led fill light |
Display mode | Infrared, visible light, fusion |
Palette | iron red, rainbow, black hot and white hot |
Measure | |
Temperature range | +30℃～+45℃ |
Measurement accuracy | ±0.5℃ |
Measurement mode | Spot measure(Center spot, highest temp, lowest temp) |
Emissivity correction | Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter |
Image format | JPEG format with 14-bit measurement data image |
System functions | |
USB interface | USB2.0, Image, measurement data transmission |
WIFI | Yes, equipped with dedicated APP |
Function settings | Date / time, temp unit ℃/℉/K, language |
Storage | 8G memory, support expansion |
Laser indicator | Class 2, 1mW, 635nm red |
Tripod | 1/4” -20 |
Battery type | Lithium battery, rechargeable |
Operating time | 8h continuous working (room temperature) |
Charging type | Micro USB direct charge |
Charging time | 4h(room temperature) |
Environment Parameters | |
Operating temperature range | +16℃～+32℃ |
Storage temperature range | -40℃～+70℃ |
Humidity | ≤95%(non-condensing) |
Drop protection | 2m |
Encapsulation | IP54(IEC60529) |
Physical data | |
Size | 190mm×72mm×60mm |
Weight | ≤320g(with battery) |
Standard | Thermal Imaging Camera, adapter, USB cable, warranty card, certificate, calibration book |
Clinical Diagnosis
Veterinary
Medical Research
Disease field
Public area
