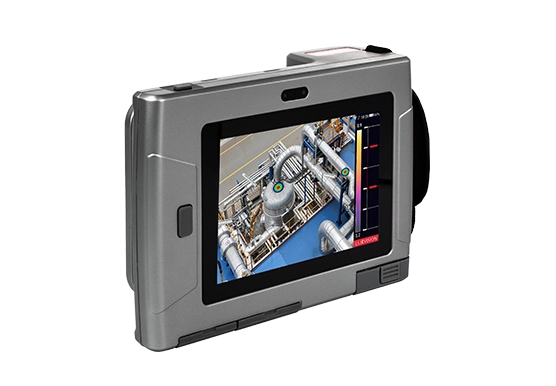

TS138|TS138EX is a handheld acoustic imaging camera that supports audible and ultrasonic frequency bands, it can be applied in gas leakage detection, mechanical vibration abnormal sound detection, and partial discharge detection. The device utilizes microphone array beamforming technology to acquire sound source distribution data, and cooperates with HD camera to capture real-time video. Through the fusion of sound source distribution data with video images, the changing sound source is dynamically presented on the display screen. Among them, TS138EX meets the explosion-proof requirements: Ex ic op is ⅡC T6 Gc.

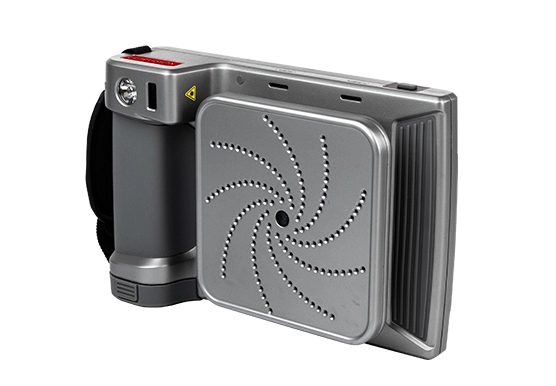

138 channel digital MEMS microphone
2kHz-100kHz effective test bandwidth
Laser ranging
7-inch high-brightness capacitive touch screen, clearly visible in the sun
4 hours battery life, support USB Type-C fast charging
Real-time acoustic cloud image display
The test frequency range is manually adjustable
Video and image storage
Number of microphones | 138 channel digital MEMS microphone |
Effective test frequency range | Support 2kHz~100kHz |
Test sound pressure level range | 30dB~120dB |
Frame rate | More than 25FPS at 2k test bandwidth |
FOV | 62° |
Camera pixel | 13 megapixels |
Display resolution | 1920x1200 |
Display size | 7 inches |
Battery life | Approx. 4 hours at full load |
Appearance size | 245mmx165mmx67mm |
Weight | 1.35kg(Excluding hand strap and shoulder strap accessories) |
Protection level | IP54 |
Detection and location of pressurized gas air and vacuum leakage
Partial discharge detection and location
Structural vibration monitoring and positioning
