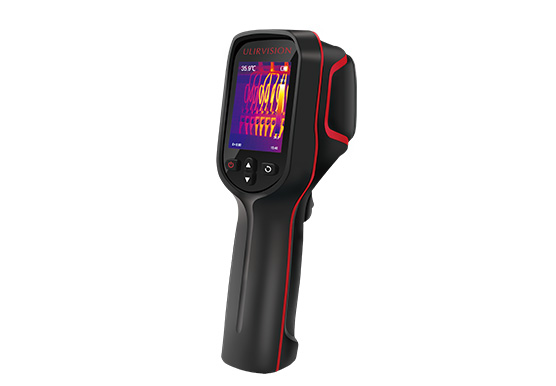

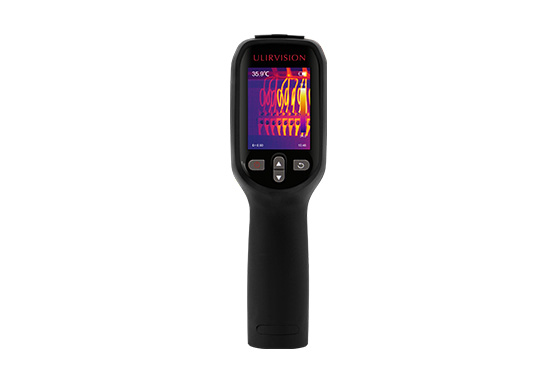

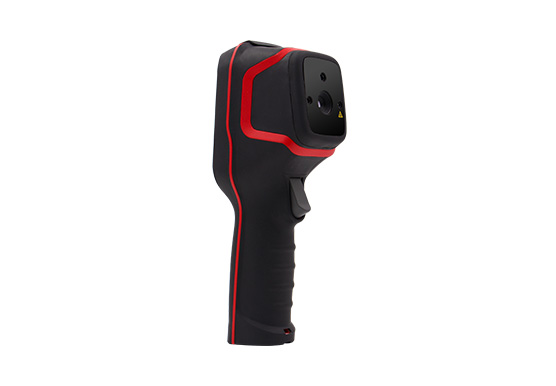

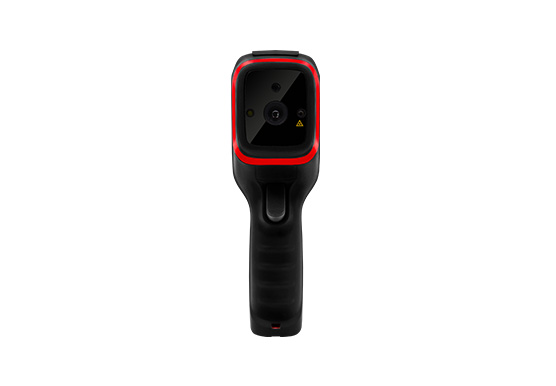

T10 is a portable thermal imaging camera. Accurate temperature measurement, real-time imaging, high-temp auto tracking, quickly lock the target. With durable quality, compact and lightweight body, integrated with multiple sensing functions of infrared, visible light, fill light, laser indicator, T10 can effectively improve the efficiency of detection.
160×120 Uncooled detector
Visible and infrared image fusion and overlay
Multiple measure modes: Center spot, highest temp, lowest temp
Multiple sensors: infrared, visible light, fill light, laser indicator
8hours battery life
Weighing only 320g
2 meters drop protection
Item | T10 |
Detector Data | |
Type | Uncooled FPA |
IR resolution | 160×120 |
Pixel pitch | 17μm |
Spectral range | 7.5～14μm |
NETD/Sensitivity | 50mK |
Lens Data | |
FOV | 42°× 32° |
Minimum imaging distance | 30cm |
IFOV | 4.42mrad |
Focus | No need to focus |
Image Performance | |
Display | 2.4”LCD display,320×240 |
Visible light camera | 3 megapixel CMOS, auto focus, 1 led fill light |
Display mode | Infrared, visible light, fusion |
Palette | 12 options (including iron red, rainbow, white hot and black hot) |
Measure | |
Temperature range | -20℃～+600℃ |
Measurement accuracy | ±2℃/±2% (reading range), take the bigger value |
Measurement mode | Point(Center, Max, Min), Box(Max, Min) |
Emissivity correction | Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter |
Image format | JPEG format with 14-bit measurement data image |
System functions | |
USB interface | USB2.0, Image, measurement data transmission |
Function settings | Date / time, temp unit ℃/℉/K, language |
Storage | 8G memory, support expansion |
Laser indicator | Class 2, 1mW, 635nm red |
Tripod | 1/4” -20 |
Battery type | Lithium battery, rechargeable |
Operating time | 8h continuous working (room temperature) |
Charging type | Micro USB direct charge |
Charging time | 4h(room temperature) |
Environment Parameters | |
Operating temperature range | -20℃～+50℃ |
Storage temperature range | -40℃～+70℃ |
Humidity | ≤95%(non-condensing) |
Drop protection | 2m |
Encapsulation | IP54(IEC60529) |
Physical data | |
Size | 190mm×72mm×60mm |
Weight | ≤320g(with battery) |
Standard | Thermal Imaging Camera, adapter, USB cable, warranty card, calibration book, user manual |
Quality assurance | |
CE | Yes |
ROHS | Yes |
Building diagnosis
Electrical/mechanical inspection
Research and development
Automation application
Preventive and predictive maintenance
